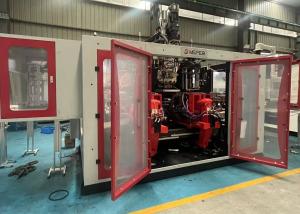

Product Description:
The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. This machine is capable of producing hollow products ranging in size from 5 milliliters to 100 liters. The range of products that can be produced includes bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts.
It is versatile and can handle a variety of materials such as PE, PP, PVC, PA, PC, PS, and EVA, providing a perfect processing solution for different products.
Features:
Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably, and equably.
By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
Mould clamping device adopts toggle type and linear guider. Double station, the speed of mould platen moving more quickly and stably.
Improved design of hydraulic oil loop. Power saving, rapid and stable.
Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
Three operation modes - “Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
Safety door adopts electric and mechanical safety devices( no mould closing happens when safety door opens) which make operation safe and reliable.
This machine has two blowing functions of straight cutting and oblique cutting.
Oblique blowing function
Technical Parameters:
parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
10 |
| Number of heads |
SET |
3 |
|
Machine dimension
(LxWxH)
|
M |
3.5X5.6X2.65 |
| Machine weight |
TON |
13 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-630 |
| Plate stroke |
MM |
600 |
| Max mould sizes(WxH) |
MM |
580x450 |
| |
|
Extrusion system
|
Screw diameter |
MM |
90 |
| Screw slenderness ratio |
L/D |
26 |
| Plasticizing ability (HDPE) |
KG/H |
140 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
20 |
| Screw fan power |
KW |
0.56 |
| Extrusion motor power |
KW |
45 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.8 |
| |
|
Energy consumption
|
Total machine power |
KW |
117 |
| Oil motor power |
KW |
29 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications:
MEPER 80FD Extrusion Molding Machine is a versatile and efficient product suitable for a wide range of application occasions and scenarios. With its advanced features and high-quality construction, this machine is ideal for various industries requiring precision molding processes.
Whether you are in the packaging industry, automotive sector, or consumer goods manufacturing, the MEPER 80FD Extrusion Molding Machine can cater to your production needs. Its robust design and reliable performance make it a valuable asset for businesses looking to streamline their manufacturing processes.
Thanks to its fully automatic operation, this machine is perfect for high-volume production environments where efficiency and consistency are crucial. The 4 cavity blow moulding machine ensures rapid production cycles without compromising on quality, making it a cost-effective solution for businesses looking to enhance their production capabilities.
Manufactured in China, the MEPER 80FD Extrusion Molding Machine meets the highest quality standards and is CE/ISO9001:2008 certified. This certification guarantees that the machine adheres to strict quality control measures, ensuring reliable and consistent performance.
With a minimum order quantity of 1 set and negotiable pricing, the MEPER 80FD Extrusion Molding Machine offers flexibility to businesses of all sizes. Its standard packaging and delivery time of 25-35 work days further enhance its appeal, ensuring a smooth and hassle-free procurement process.
The machine's payment terms of L/C, T/T, and supply ability of 100 sets per month make it a convenient and accessible option for businesses worldwide. Its 3SET number of heads, 150KN mould clamping force, and 240-630MM platen opening strokes provide versatility and precision in molding various materials, including PE and PP.
Weighing 13 tons, the MEPER 80FD Extrusion Molding Machine is a sturdy and durable product designed to withstand rigorous production demands. Its applicability across different industries and superior performance make it a top choice for businesses seeking a reliable and efficient extrusion molding solution.
Support and Services:
The Product Technical Support and Services for the Extrusion Molding Machine include:
- Installation guidance and support
- Training for machine operation and maintenance
- Troubleshooting assistance for technical issues
- Regular maintenance and servicing options
- Spare parts availability and ordering
